OIST LaTeX Template: OIST Posters
Author
Jeremie Gillet
Last Updated
3년 전
License
Other (as stated in the work)
Abstract

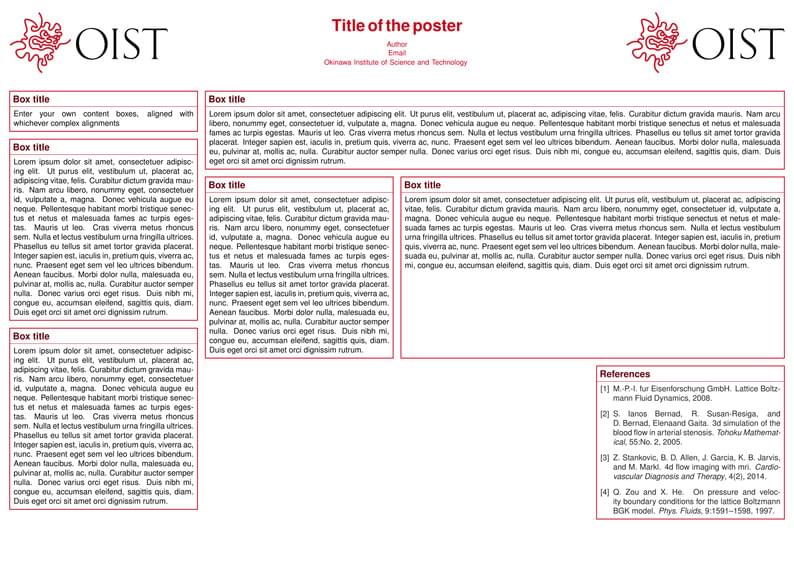

OIST LaTeX Template: OIST Posters
OIST LaTeX Template: OIST Posters
% Poster Template for the Okinawa Institute of Science and Technology (OIST)
% Created by Jeremie Gillet on June 2019
\documentclass[
a0paper, % Size of poster
landscape, % Orientation
fontscale=0.3 % General scaling for fonts, increase the number for smaller fonts (considered removing text first)
]{baposter}
% Graphics
\usepackage{graphicx} % Required for including images
\graphicspath{{figures/}} % Directory in which figures are stored
% Add any packages you need here
\usepackage{amsmath} % For typesetting math
\usepackage{lipsum} % For dummy text
% Defining colors
\selectcolormodel{HTML}
\definecolor{OIST}{HTML}{C80019}
\definecolor{DarkRed}{RGB}{100,0,10}
% Changing fonts family
\renewcommand{\familydefault}{\sfdefault}
\usepackage{helvet}
% Starting document, feel free to change the style of headers and boxes
% Documentation can be found here: http://www.brian-amberg.de/uni/poster/
% Unfortunately it is not very complete
\begin{document}
\begin{poster}{ % General poster options
columns=4, % Number of columns, maximum 6
eyecatcher=true, % Set to false for ignoring the left logo in the title and move the title left
background=none, % No background
linewidth=1pt, % Width of the border lines around content boxes
textborder=rectangle, % Format of the border around content boxes, can be: none, bars, coils, triangles, rectangle, rounded, roundedsmall, roundedright or faded
borderColor=OIST, % Border color
headerheight=0.15 \textheight, % Height of the header
headershape=rectangle, % Specify the rounded corner in the content box headers, can be: rectangle, small-rounded, roundedright, roundedleft or rounded
headerfont=\large \sf \bf, % Large, bold and sans serif font in the headers of content boxes
headerborder=closed, % Adds a border around the header of content boxes
headershade=plain, % Single color in the background
headerColorOne=white, % Background color for the header in the content boxes
headerFontColor=DarkRed, % Text color for the header text in the content boxes
boxColorOne=white, % Background color of the content boxes
}
{ \includegraphics[height=.75 \headerheight]{logo.jpg} } % Eyecatcher on the left
{ \color{OIST}\huge Title of the poster } % Poster title
{ \color{OIST}\small
\vspace{1em}
Author\\
Email\\
Okinawa Institute of Science and Technology
} % Authors
{ \includegraphics[height=.75 \headerheight]{logo.jpg} } % Eyecatcher on the right
\begin{posterbox}[
name = box1, % Name for alignment
column = 0, % First column
]{Box title}
Enter your own content boxes, aligned with whichever complex alignments
\end{posterbox}
\begin{posterbox}[
name = box2, % Name for alignment
column = 0, % First column
below = box1, % Alignment
]{Box title}
\lipsum[1]
\end{posterbox}
\begin{posterbox}[
name = box3, % Name for alignment
column = 0, % First column
below = box2, % Alignment
]{Box title}
\lipsum[1]
\end{posterbox}
\begin{posterbox}[
name = box4, % Name for alignment
column = 1, % First column
span = 3, % Vertical span of columns
]{Box title}
\lipsum[1]
\end{posterbox}
\begin{posterbox}[
name = box5, % Name for alignment
column = 1, % First column
below = box4, % Alignment
]{Box title}
\lipsum[1]
\end{posterbox}
\begin{posterbox}[
name = box6, % Name for alignment
column = 2, % First column
span = 2, % Vertical span of columns
below = box4, % Alignment
bottomaligned = box5, % Alignment
]{Box title}
\lipsum[1]
\end{posterbox}
% References, if required
\begin{posterbox}[
name = references, % Name for alignment
column = 3, % Last column
below = box6, % Alignment
]{References}
\renewcommand{\section}[2]{} % Get rid of the default "References" section title
\nocite{*} % Insert publications even if they are not cited in the poster
\bibliography{Bibliography}
\bibliographystyle{abbrv}
\end{posterbox}
\end{poster}
\end{document}
